The Ultra Reef AKULA UKS protein skimmer is an essential

addition to any aquarium. Compact and robust, the skimmer works

quietly and efficiently to remove contaminants from your aquarium,

leaving the water clean, clear and healthy for your marine life.

Reliability and performance

Our skimmers are equipped with Sicce AC pumps with latest generation needle

impeller. Using venturi opposed cone, designed and manufactured by Ultra Reef,

these pumps are able to mix large volumes of air and water within the skimmer.

The simple design and the long tuning work guarantee excellent performance

over time. The use of Ultra Reef skimmers improves oxygenation and makes the

aquarium water exceptionally clean and clear.

Progressive regulation

Fine tuning is easy with the the precise and intuitive adjustment system.

Extraction capacity is adjusted by turning a simple knob that activates a screw

opening and closing system. This allows the nutrient content and water quality to

be kept at optimum levels, ensuring stability even in new aquariums with

extraneously low organic content.

Noiseless

Ultra Reef skimmers have an integrated silencer that minimizes the skimmer

noise making it virtually silent. The exhaust system is submerged in the base of

the skimmer for silent operation as the clean water is discharged back into the

tank. Rubber feet are installed under the base to absorb all vibrations and avoid

annoying resonances.

How it works?

The Ultra Reef range of protein skimmers are designed to filter

aquariums by removing the surfactants from seawater. It pumps a

mixture of Aquarium water and air bubbles into a mixing chamber.

By exploiting the properties of the film surface tension between air

and water. It generates a dense foam that moves upward into the

collection cup where it can be easily removed and cleaned out as

necessitates.

To be installed in sump, water level ~ 22 cm (8-9 in).

Aquarium size

Minimum 200 lit (50 US gal) Maximum 500 lit (130 US gal)

Performance

Pump Sicce PSK 600+ Air intake ~ 500-600 lit/h Water intake ~ 1000 lit/h

Power supply

Absorbed power ~ 22 W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 17x23 cm Height 56 cm

MSRP

Suggested price 509.00 € (22% VAT included)

AKULA

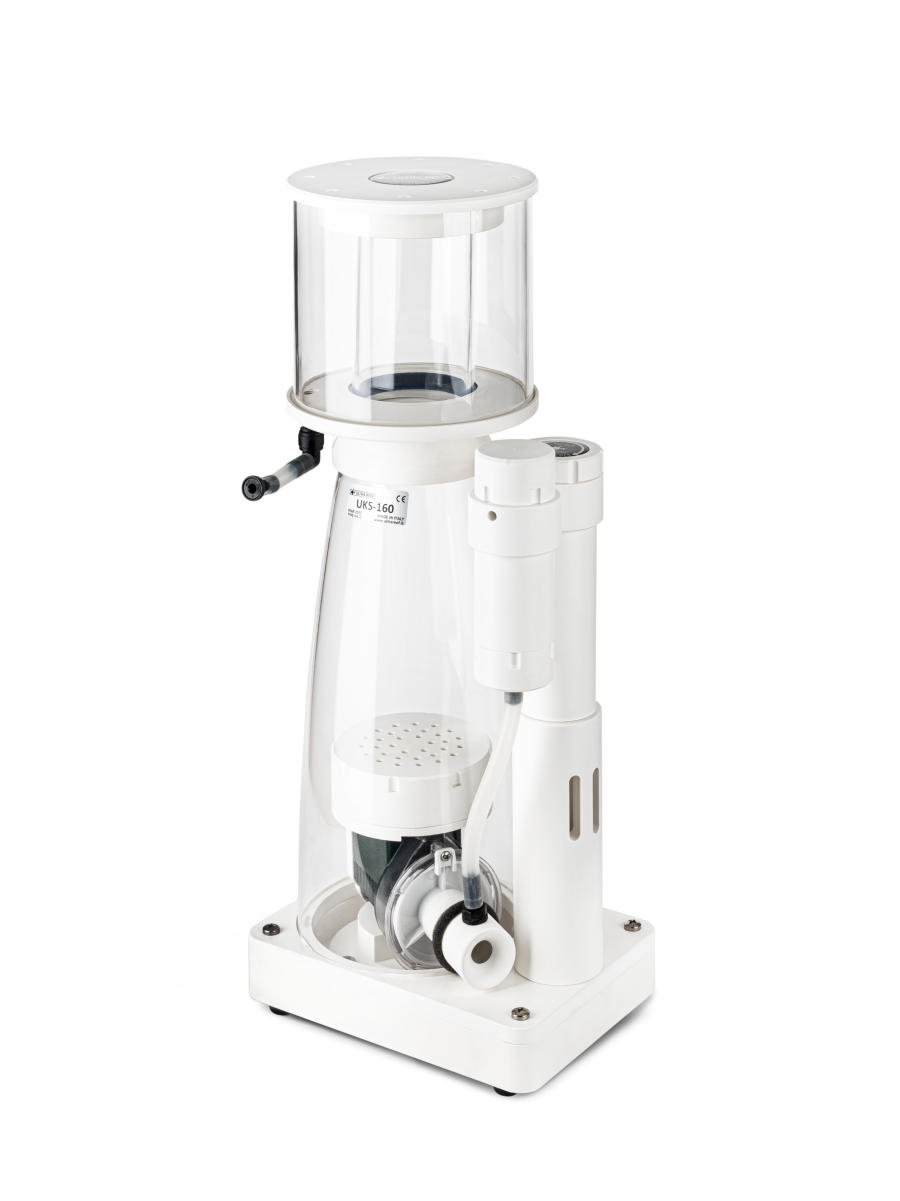

UKS-160 mk.II

AKULA

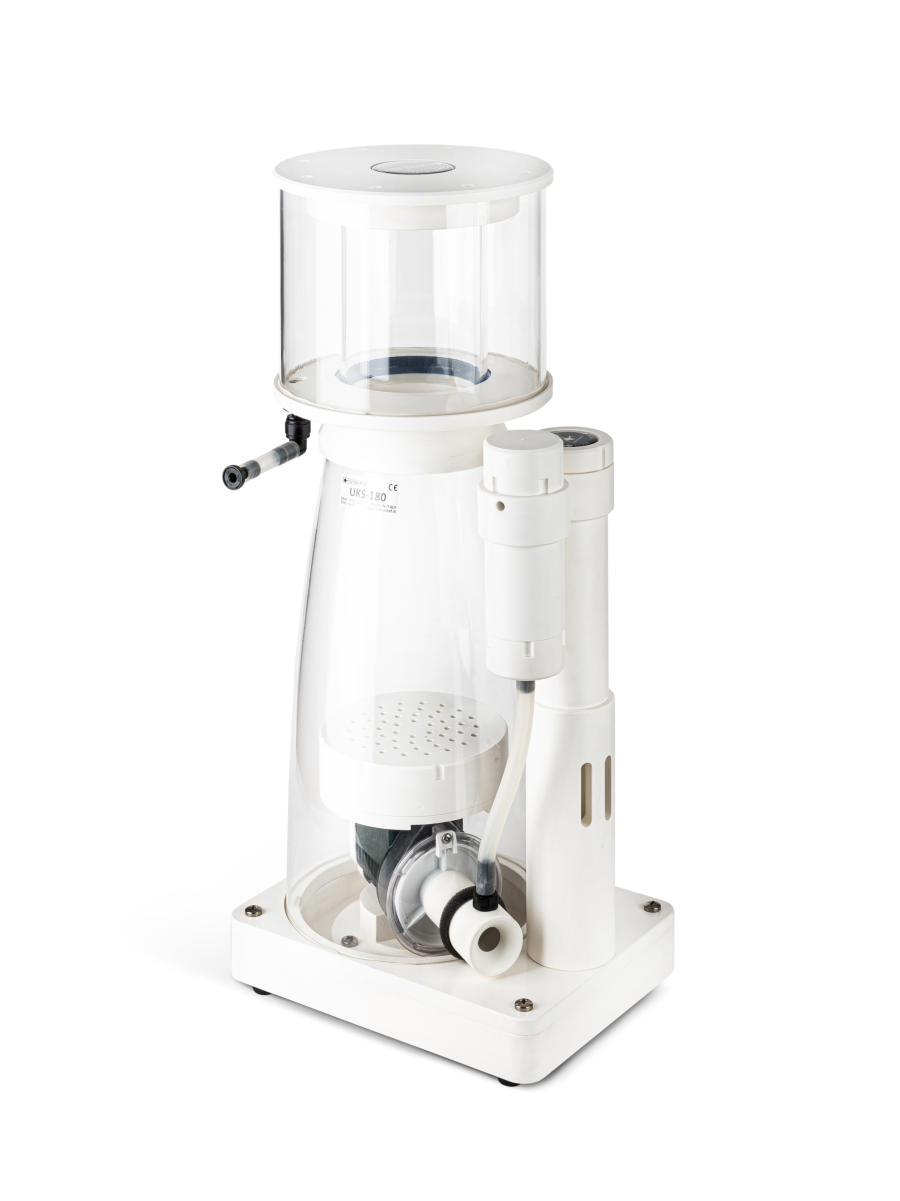

UKS-180 mk.II

AKULA

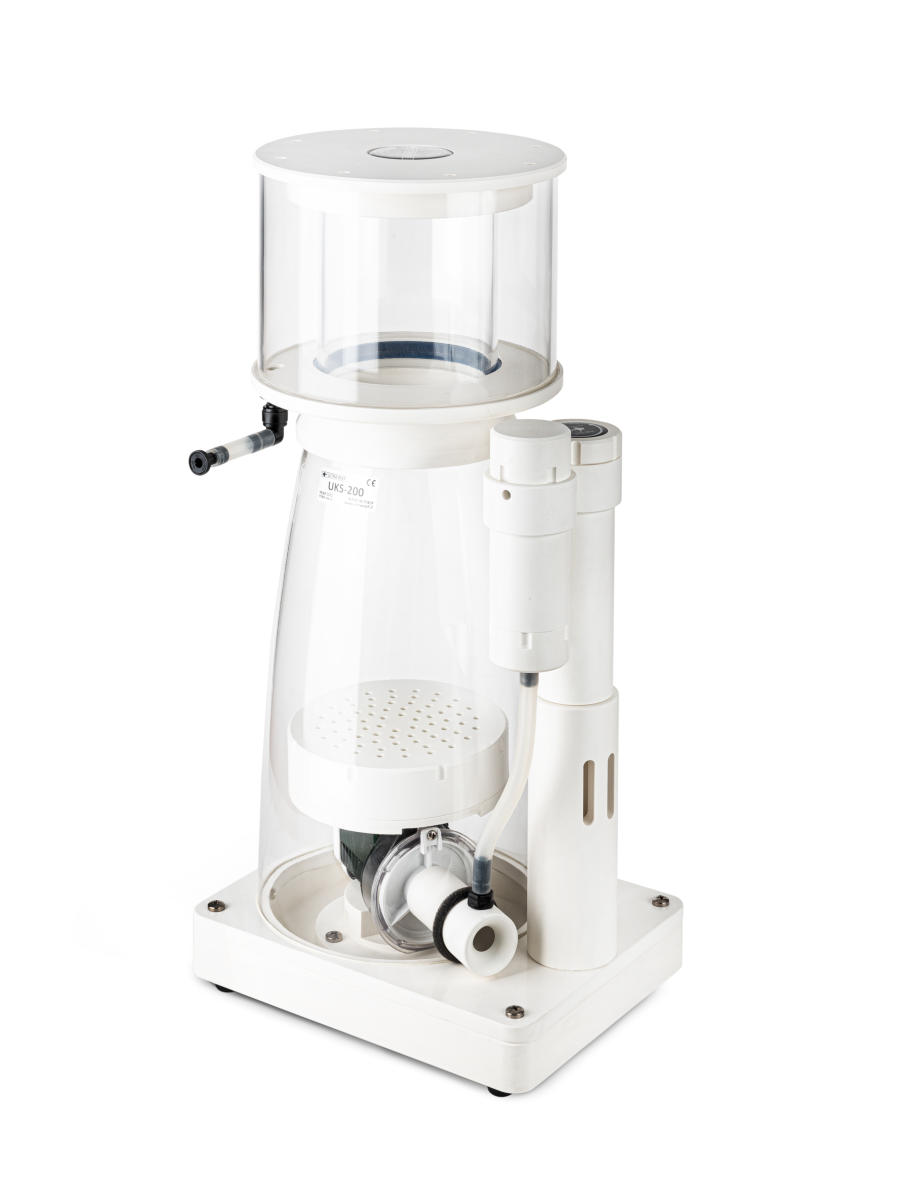

UKS-200 mk.II

Aquarium size

Minimum 300 lit (80 US gal) Maximum 700 lit (130 US gal)

Performance

Pump Sicce PSK 1000+ Air intake ~ 700-800 lit/h Water intake ~ 1400 lit/h

Power supply

Absorbed power ~ 25 W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 19x25 cm Height 56 cm

MSRP

Suggested price 579.00 € (22% VAT included)

Aquarium size

Minimum 400 lit (100 US gal) Maximum 900 lit (240 US gal)

Performance

Pump Sicce PSK 1200+ Air intake ~ 900-1000 lit/h Water intake ~ 1800 lit/h

Power supply

Absorbed power ~ 28W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 21x27 cm Height 56 cm

MSRP

Suggested price 649.00 € (22% VAT included)

ULTRA REEF by Ultra Pompe S.r.l.

Via Carlo Goldoni 37 20090 Trezzano sul Naviglio (Milano - Italia) P.IVA 00210510152 SDI t04zhr3

Skimmer

AKULA

AKULA

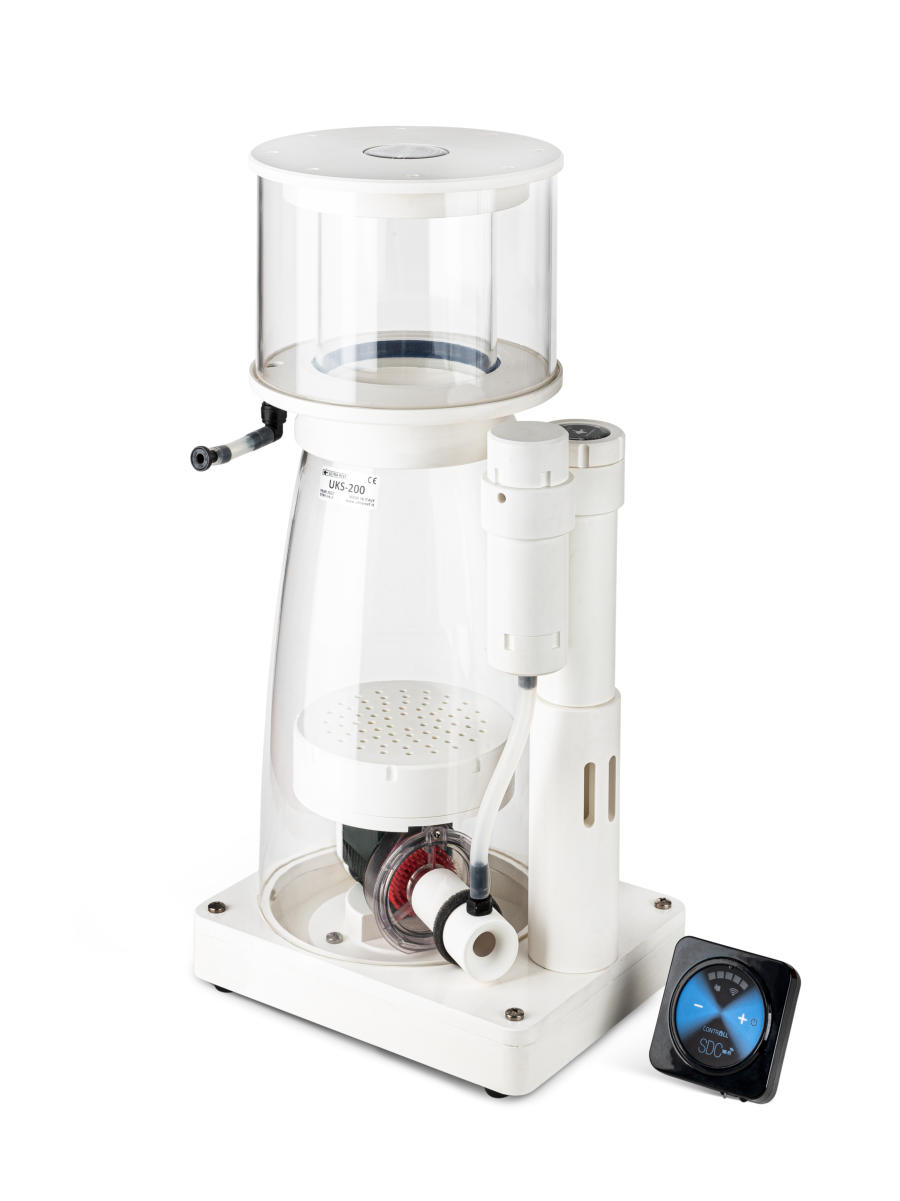

UKS-200 mk.II DC

Aquarium size

Minimum 400 lit (100 US gal) Maximum 900 lit (240 US gal)

Performance

Pump Sicce PSK-SDC 1200+ Air intake ~ 900-1000 lit/h Water intake ~ 1800 lit/h

Power supply

Absorbed power ~ 20-50W Power supply DC 24V 50/60Hz Plug EU+US

Dimensions

Base 21x27 cm Height 56 cm

MSRP

Suggested price 739.00 € (22% VAT included)

Equipped with a controller for adjusting the speed and

wattage of the pump for additional tuning.

ULTRA REEF by Ultra Pompe S.r.l.

Via Carlo Goldoni 37 20090 Trezzano sul Naviglio (Milano - Italia) P.IVA 00210510152 SDI t04zhr3

The Ultra Reef AKULA UKS protein skimmer is an essential

addition to any aquarium. Compact and robust, the skimmer

works quietly and efficiently to remove contaminants from

your aquarium, leaving the water clean, clear and healthy for

your marine life.

Reliability and performance

Our skimmers are equipped with Sicce AC pumps with latest

generation needle impeller. Using venturi opposed cone,

designed and manufactured by Ultra Reef, these pumps are

able to mix large volumes of air and water within the skimmer.

The simple design and the long tuning work guarantee

excellent performance over time. The use of Ultra Reef

skimmers improves oxygenation and makes the aquarium

water exceptionally clean and clear.

Progressive regulation

Fine tuning is easy with the the precise and intuitive

adjustment system. Extraction capacity is adjusted by turning

a simple knob that activates a screw opening and closing

system. This allows the nutrient content and water quality to

be kept at optimum levels, ensuring stability even in new

aquariums with extraneously low organic content.

Noiseless

Ultra Reef skimmers have an integrated silencer that

minimizes the skimmer noise making it virtually silent. The

exhaust system is submerged in the base of the skimmer for

silent operation as the clean water is discharged back into the

tank. Rubber feet are installed under the base to absorb all

vibrations and avoid annoying resonances.

How it works?

The Ultra Reef range of protein skimmers are designed to

filter aquariums by removing the surfactants from seawater. It

pumps a mixture of Aquarium water and air bubbles into a

mixing chamber. By exploiting the properties of the film

surface tension between air and water. It generates a dense

foam that moves upward into the collection cup where it can

be easily removed and cleaned out as necessitates.

To be installed in sump, water level ~ 22 cm (8-9 in).

Aquarium size

Minimum 200 lit (50 US gal) Maximum 500 lit (130 US gal)

Performance

Pump Sicce PSK 600+ Air intake ~ 500-600 lit/h Water intake ~ 1000 lit/h

Power supply

Absorbed power ~ 22 W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 17x23 cm Height 56 cm

MSRP

Suggested price 509.00 € (22% VAT included)

AKULA

UKS-160 mk.II

AKULA

UKS-180 mk.II

AKULA

UKS-200 mk.II

Aquarium size

Minimum 300 lit (80 US gal) Maximum 700 lit (130 US gal)

Performance

Pump Sicce PSK 1000+ Air intake ~ 700-800 lit/h Water intake ~ 1400 lit/h

Power supply

Absorbed power ~ 25 W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 19x25 cm Height 56 cm

MSRP

Suggested price 579.00 € (22% VAT included)

Aquarium size

Minimum 400 lit (100 US gal) Maximum 900 lit (240 US gal)

Performance

Pump Sicce PSK 1200+ Air intake ~ 900-1000 lit/h Water intake ~ 1800 lit/h

Power supply

Absorbed power ~ 28W Voltage (EU) AC 220/50Hz Voltage (US) AC 110/60Hz

Dimensions

Base 21x27 cm Height 56 cm

MSRP

Suggested price 649.00 € (22% VAT included)

Skimmer

AKULA

BOREI

Skimmer

AKULA

Skimmer

TYPHOON

Skimmer

U50

In & Out

AKULA

UKS-200 mk.II DC

Aquarium size

Minimum 400 lit (100 US gal) Maximum 900 lit (240 US gal)

Performance

Pump Sicce PSK-SDC 1200+ Air intake ~ 900-1000 lit/h Water intake ~ 1800 lit/h

Power supply

Absorbed power ~ 20-50W Power supply DC 24V 50/60Hz Plug EU+US

Dimensions

Base 21x27 cm Height 56 cm

MSRP

Suggested price 739.00 € (22% VAT included)

Equipped with a controller for adjusting the speed and

wattage of the pump for additional tuning.
